Amplifier Coupling Methods

To obtain greater amplification, transistor amplifiers may be connected together. However, to prevent one amplifier’s bias voltage from affecting the operation of the second amplifier, a coupling technique must be used.

Amplifier Coupling Methods

The coupling method used must not disrupt the operation of either circuit. Coupling methods used include resistance-capacitance coupling, impedance coupling, transformer coupling, and direct coupling.

Resistive Capacitive Coupling

Resistive-capacitive coupling, or RC coupling, consists of two resistors and a capacitor connected as shown in Figure 1.

amplifier coupling methods, resistive capacitive coupling

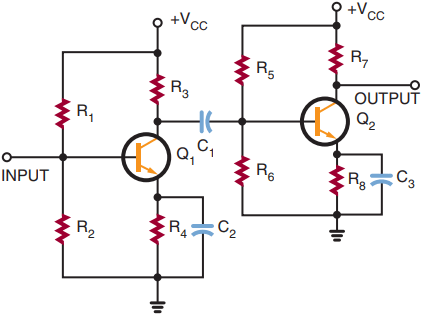

Fig. 1. RC coupling.

Resistor R3 is the collector load resistor of the first stage. Capacitor C1 is the DC-blocking and AC-coupling capacitor. Resistors R5 and R6 are the input load resistor and DC return resistor for the base-emitter junction of the second stage. Resistance-capacitive coupling is used primarily in audio amplifiers.

Coupling capacitor C1 must have a low reactance to minimize low-frequency attenuation. Typically, a high-capacitance value of 10 to 100 micro-farads is used. The coupling capacitor is generally an electrolytic type. The reactance of the coupling capacitor increases as the frequency decreases.

The low-frequency limit is determined by the size of the coupling capacitor. The high-frequency limit is determined by the type of transistor used.

Impedance Coupling

The impedance-coupling method is similar to the RC-coupling method, but an inductor is used in place of the collector load resistor for the first stage of amplification.

Impedance coupling works just like RC coupling. The advantage is that the inductor has a very low DC resistance across its windings. The AC output signal is developed across the inductor just as across the load resistor.

However, the inductor consumes less power than the resistor, increasing the overall efficiency of the circuit. The disadvantage of impedance coupling is that the inductance reactance increases with the frequency. The voltage gain varies with the frequency. This type of coupling is ideal for single-frequency amplification when a very narrow band of frequencies must be amplified.

Transformer Coupling

In a transformer-coupled circuit, the two amplifier stages are coupled through the transformer (Figure 2). The transformer can effectively match a high-impedance source to a low-impedance load.

transformer coupling, coupling amplifier

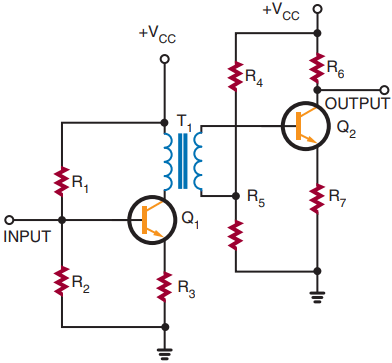

Fig. 2. Transformer coupling.

The disadvantage is that transformers are large and expensive. Also, like the inductor-coupled amplifier, the transformer-coupled amplifier is useful only for a narrow band of frequencies.

Direct Coupling

When very low frequencies or a DC signal must be amplified, the direct-coupling technique must be used (Figure 3). Direct-coupled amplifiers provide a uniform current or voltage gain over a wide range of frequencies.

direct coupling, coupling in amplifier, coupling in electronics

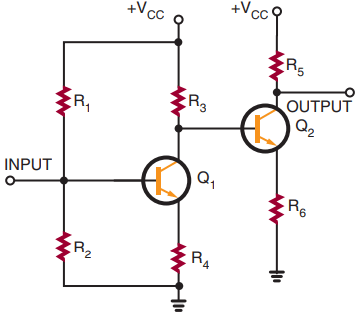

Fig. 3. Direct coupling.

This type of amplifier can amplify frequencies from zero (DC) hertz to many thousands of hertz.

However, direct-coupled amplifiers find their best applications with low frequencies. A drawback of direct-coupled amplifiers is that they are not stable.

Any change in the output current of the first stage is amplified by the second stage. This occurs because the second stage is essentially biased by the first stage. To improve the stability requires the use of expensive precision components.
